The Original Hi-Lift® Jack
|
The Hi-Lift® Jack is a rugged, highly
versatile jack that puts you in command of situations requiring lifting, pushing, pulling,
winching, and clamping. Although light in weight and easy to maneuver, the Hi-Lift® Jack offers a
rated lifting capacity of 2 1/3 tons.
 SPECIFICATIONS:
Approximate weight: 30lbs.
4,660 lbs rated capacity.
Climbing pins of specially processed steel with 125,000 PSI tensile strength and 100,000 PSI
yield.
Steel bar is manufactured of specially rolled extra high carbon steel with 80,000 pound minimum
tensile & carbon .69 to .82.
Steel handle of 14 gauge high-yield structural tubing with minimum yield of 55,000 PSI. 1 5/16"
diameter x 30" long.
(click image for large view) |
. |
. |
| . |
 FEATURES:
Every Jack comes complete with an adjustable top clam clevis for use in clamping and winching.
Safety bolt is designed to shear at 7,000 lbs.
For speedy disengaging, lifting unity automatically drops away when load is removed.
4 1/2" long lifting nose for positive contact with load.
Steel bar can be reversed for extra long life.
Low pickup of 4 1/2".
28" square in base plate. |
. |
. |
| . |
| . |
| . |

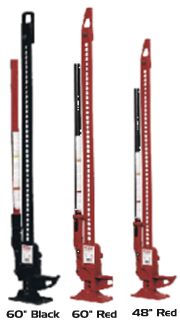

60" Black
Cast & stamped steel construction.
7000lb tested capacity. |
|
. |
| . |
60" Red
All cast construction.
7000lb tested capacity. |
|
. |
| . |
48" Red
All cast construction.
7000lb tested capacity. |
|
. |
| . |
|
U.S. SHIPMENTS (CONTINENTAL U.S. ONLY) |
Size
Hi-Lift Jack
Shipping |
. |
60" Black
$72.95
$25.00 * |
. |
60" Red
$84.95
$25.00 * |
. |
48" Red
$79.95
$21.00 * |
. |
|
Total |
. |
$97.95 |
. |
$109.95 |
. |
$100.95 |
. |
|
|
* Includes sales tax where applied |
|
. |
. |
| . |
(click image for large view)
Convenient to use, easy to store.
Alleviates jack sinkage on soft ground.
Rugged construction meets Hi-Lift®
specifications for strength & durability. |
. |
|
Hi-Lift® Jack Off-Road Base
|
|
The Off-Road Base is an authorized Hi-Lift®
Accessory, and can be used with any model of Hi-Lift® Jack. |
. |
| . |
|
U.S. SHIPMENTS (CONTINENTAL U.S. ONLY) |
Off-Road Base
Shipping |
. |
$39.95
$10.00 * |
. |
. |
|
* Includes sales tax where applied |
. |
|
|
. |
. |
| . |
(click image for large view)
Mounting brackets are slotted for adjustment.
Velcro handle strap secures handle to jack.
All mounting hardware and instructions are included (some
drilling required).
A padlock can be placed through a hole in the carriage
bolt.
1/8" steel construction holds up under the strain of
off-road travel. |
. |
The 4xRac is an authorized Hi-Lift®
Accessory, and is designed for serious off-roaders who are looking for an easy, inexpensive way
to stow their Hi-Lift® Jack in a convenient, secure location.
Kit contains 2 mounting brackets, 2 mounting bracket caps, a Velcro strap for securing the
jack handle and all necessary mounting hardware. |
. |
| . |
|
U.S. SHIPMENTS (CONTINENTAL U.S. ONLY) |
4xRac
Shipping |
. |
$39.95
$10.00 * |
. |
. |
|
* Includes sales tax where applied |
. |
|
|
. |
. |
| . |
(click image for large view)
Installation is simple. It can be mounted horizontally or vertically. Your Hi-Lift® Jack is
mounted in the Loc-Rac to deter theft. It also places the Jack in an easy to reach
location. |
. |
|
The Loc-Rac is an authorized Hi-Lift®
Accessory, a convenient mounting and locking device for storage of your Hi-Lift® Jack. Lock included. |
. |
| . |
|
U.S. SHIPMENTS (CONTINENTAL U.S. ONLY) |
Loc-Rac
Shipping |
. |
$29.95
$10.00 * |
. |
. |
|
* Includes sales tax where applied |
. |
|
|
. |
. |
| . |
XD Recovery Kit
The all-in-one recovery kit, w/ heavy-duty gear bag. |
. |
Recovery Chain Kit
The recovery kit, for extreme conditions, w/ heavy-duty gear bag. |
. |
Hi-Lift® Off-Road Kit
The Off-Road Kit is an authorized Hi-Lift® accessory kit, designed to keep all of the needed
parts for winching at arms reach. |
. |
|
. |
. |
| . |
Disclaimer. Please read:
The effectiveness of this equipment is directly related to the manner in which it is installed,
used (for off-road use only), and/or maintained. Proper installation, use and maintenance is solely the responsibility of
the installer/user, and will not be assumed by Billet4X4.com.
|
. |
. |
|
|
