(click image for large view)

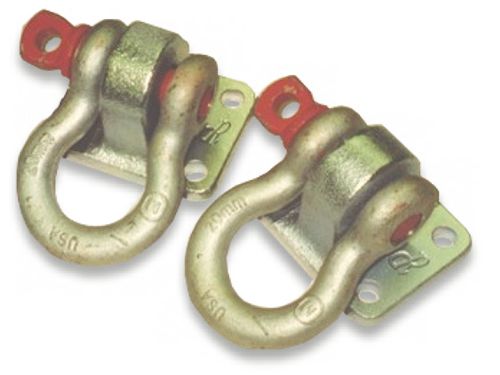

 Sold in pairs or singles.
Zinc-plated finish.
3 Ton working load.
Use on front or rear bumpers.
3" X 2" bolt pattern.
4" X 3" outer dimensions.
Includes 1/2" Grade 8 hardware.
Accepts our 3/4" D-shackles.
D-shackles sold separately.
Ideal for use with a recovery bridle.
Note: Use only on a well-made
off-road bumper.
(click image for large view) |
. |

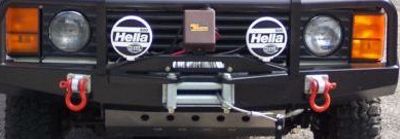

Our Heavy-duty bumper shackle mounts fit
every make of off-road bumper including brand-name bumpers (ARB, TJM), and custom-made bumpers.
Without question, the strongest add-on recovery point you can buy.
The recommended solution for vehicles without
bumper-integrated recovery points, or solid frame-mounted recovery points (Factory tie-downs are
not recovery points).
Grade 8 mounting hardware included. |
. |
| . |
|
U.S. SHIPMENTS (CONTINENTAL U.S. ONLY) |
HD Shackle Mounts (pair)
Shipping |
. |
$72.95
$12.50 * |
. |
. |
|
U.S. SHIPMENTS (CONTINENTAL U.S. ONLY) |
HD Shackle Mounts (single)
Shipping |
. |
$35.95
$9.00 * |
. |
. |
|
* Includes sales tax where applied |
. |
Note: For bumpers
thinner than 3/16" steel, we recommend using a backing plate slightly larger than the dimensions
of the shackle mount behind the off-road bumper when bolting on the shackle mount. See our backing
plates below. |
|
. |
. |
| . |
(click image for large view)
|
. |
. |
| . |
(click image for large view)
Sold in pairs or singles.
Ready-to-be-painted finish.
1/4" thick steel.
Use on front or rear bumpers.
3" X 2" bolt pattern.
1/4" wider than shackle mount.
Accepts our Bumper Shackle Mounts.
Note: Use only on a well-made off-road bumper. |
. |

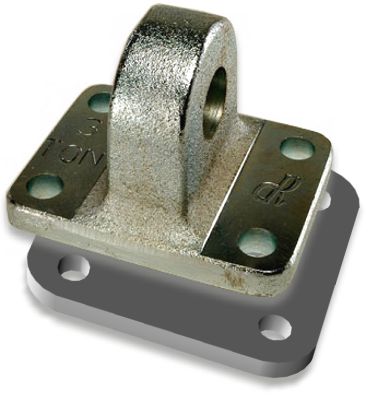

For bumpers thinner than 3/16" steel, we
recommend using our backing plate, which is 1/4" larger than the dimensions of the shackle mount.
The plate has the same bolt pattern, and mounts behind the off-road bumper when bolting on the
shackle mount.
The plates are shipped ready to be painted. Here it is
pictured with grey primer. |
. |
| . |
|
U.S. SHIPMENTS (CONTINENTAL U.S. ONLY) |
Backing Plates (pair)
Shipping |
. |
$19.95
$11.00 * |
. |
. |
|
U.S. SHIPMENTS (CONTINENTAL U.S. ONLY) |
Backing Plate (single)
Shipping |
. |
$10.00
$8.00 * |
. |
. |
|
* Includes sales tax where applied |
. |
|
|
. |
. |
| . |
(click image for large view)
Note: Use only on a well-made
off-road bumper. |
. |
|
HD Shackle Mounts w/
Backing Plates
|
|
See descriptions of our Bumper Shackle
Mounts and Backing Plates in the sections above. |
. |
| . |
|
U.S. SHIPMENTS (CONTINENTAL U.S. ONLY) |
HD Shackle Mounts w/ Backing Plates (pair)
Shipping |
. |
$88.45
$15.00 * |
. |
|
U.S. SHIPMENTS (CONTINENTAL U.S. ONLY) |
HD Shackle Mounts w/ Backing Plates (single)
Shipping |
. |
$42.95
$12.50 * |
. |
|
* Includes sales tax where applied |
. |
|
|
. |
. |
| . |
XD Recovery Kit
The all-in-one recovery kit, w/ heavy-duty gear bag. |
. |
Recovery Chain Kit
The recovery kit, for extreme conditions, w/ heavy-duty gear bag. |
. |
D-Ring Shackles
Our screw pin anchor shackles meet the high performance requirements of Federal Specification.
U.S. and import - all sizes. |
. |
|
. |
. |
| . |
Disclaimer. Please read:
The effectiveness of this equipment is directly related to the manner in which it is installed,
used (for off-road use only), and/or maintained. Proper installation, use and maintenance is solely the responsibility of
the installer/user, and will not be assumed by Billet4X4.com.
|
. |
. |
|
|
