(click image for large view)

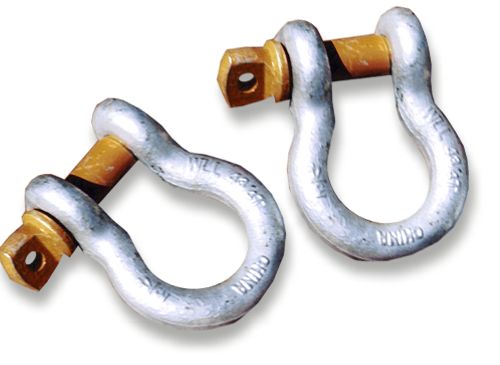

D-Shackle - VanBeest Green Pin
|
. |
VanBeest Green Pin D-Ring Shackles are the most well-known D-shackles in
the 4x4 world. Hot-dipped galvanized, with working load limits stamped on the shackles, and of course the signature green
pin.
Material: High tensile steel, Grade 6, quenched and tempered.
Working Load Limit permanently shown on every shackle.
Forged - Quenched and Tempered, with alloy pin.
Hot-dipped galvanized finish.
Note: Green paint on pin is a brand marker and will peel off revealing hot-dipped galvanized surface.
3/4" Shackle
9,500 lb Working Load Limit
47,500 lb Ultimate Strength
7/8" Pin Diameter |
|
U.S. SHIPMENTS (CONTINENTAL U.S. ONLY) |
| . |

(click image for large view)

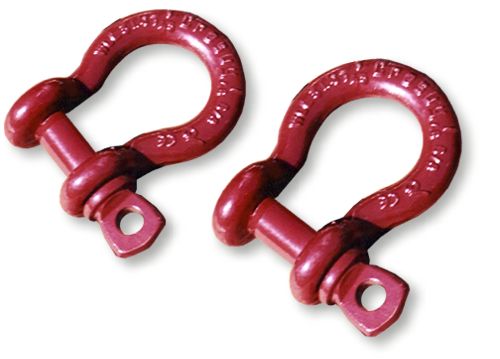

D-Shackle - Crosby McKissick
|
. |
The D-Ring Shackle is used for so many
recovery situations. It is a must to have a set of quality d-ring shackles with adequate load
rating, when venturing offroad.
Working Load Limit permanently shown on every shackle.
Forged - Quenched and Tempered, with alloy pin.
Made in the U.S.
1/2" Shackle
4,000 lb Working Load Limit
20,000 lb Ultimate Strength
5/8" Pin Diameter |
|
. |
5/8" Shackle
6,500 lb Working Load Limit
32,500 lb Ultimate Strength
3/4" Pin Diameter |
|
. |
3/4" Shackle
9,500 lb Working Load Limit
47,500 lb Ultimate Strength
7/8" Pin Diameter |
|
. |
7/8" Shackle
13,000 lb Working Load Limit
65,000 lb Ultimate Strength
1" Pin Diameter |
|
|
U.S. SHIPMENTS (CONTINENTAL U.S. ONLY) |
|
| . |
| . |
| . |
Customer Service Tip
The question we get asked most frequently - What size D-shackle will fit my vehicle's bumper
recovery points/mounts?
- Our 3/4" D-shackles with 7/8" pin is considered a standard 4x4 D-shackle size. Most factory and aftermarket bumper
recovery points are sized to fit this D-shackle.
|
. |
|
. |
. |

(click image for large view)
D-Shackle - Galvanized
|
. |
The D-Ring Shackle is used for so many
recovery situations. It is a must to have a set of quality d-ring shackles with adequate load
rating, when venturing offroad. Our galvanized D-Ring Shackle has a hot-dipped galvanized finish.
Working Load Limit stamped on every shackle.
Forged - Quenched and Tempered, with alloy pin.
Rust resistant ZINC-PLATED finish.
3/4" Shackle
9,500 lb Working Load Limit
47,500 lb Ultimate Strength
7/8" Pin Diameter |
|
. |
7/8" Shackle
13,000 lb Working Load Limit
65,000 lb Ultimate Strength
1" Pin Diameter |
|
. |
|
U.S. SHIPMENTS (CONTINENTAL U.S. ONLY) |
|
| . |

(click image for large view)
D-Shackle - Black Powdercoat
|
. |
The D-Ring Shackle is used for so many
recovery situations. It is a must to have a set of quality d-ring shackles with adequate load
rating, when venturing offroad. Our galvanized D-Ring Shackle has a hot-dipped galvanized finish.
Rust resistant finish.
Medium-gloss Black powdercoat.
Two Sizes Available.
Working Load shown on shackle.
Forged - Quenched & Tempered.
3/4" Shackle
9,500 lb Working Load Limit
47,500 lb Ultimate Strength
7/8" Pin Diameter |
|
. |
7/8" Shackle
13,000 lb Working Load Limit
65,000 lb Ultimate Strength
1" Pin Diameter |
|
. |
|
U.S. SHIPMENTS (CONTINENTAL U.S. ONLY) |
|
| . |

(click image for large view)
D-Shackle - OD Green Powdercoat
|
. |
The D-Ring Shackle is used for so many
recovery situations. It is a must to have a set of quality d-ring shackles with adequate load
rating, when venturing offroad. Our galvanized D-Ring Shackle has a hot-dipped galvanized finish.
Rust resistant powdercoated finish.
Medium-gloss OD Green color.
Two Sizes Available.
Working Load shown on shackle.
Forged - Quenched & Tempered.
Used in our military recovery kits.
3/4" Shackle
9,500 lb Working Load Limit
47,500 lb Ultimate Strength
7/8" Pin Diameter |
|
. |
7/8" Shackle
13,000 lb Working Load Limit
65,000 lb Ultimate Strength
1" Pin Diameter |
|
. |
|
U.S. SHIPMENTS (CONTINENTAL U.S. ONLY) |
|
| . |

(click image for large view)
D-Shackle - Stainless Steel
|
. |
The D-Ring Shackle is used for so many recovery situations. It is a must to have a set of quality d-ring shackles with
adequate load rating, when venturing offroad.
And there's nothing wrong with having them look good
too!
AISI
Grade 316 stainless.
Working Load shown on shackle.
American Iron and Steel Institute
AISI 316: Austenitic (chromium-nickel stainless class) stainless steel containing 2%-3%
molybdenum. The inclusion of molybdenum gives 316 greater resistance to various forms of
deterioration.
3/4" Shackle (AISI 316) 4 Ton Working Load 44,000 lb Ultimate Strength
7/8" Pin Diameter |
|
U.S. SHIPMENTS (CONTINENTAL U.S. ONLY) |
| . |
| . |

XD Recovery Kit
The all-in-one recovery kit, w/ heavy-duty gear bag. |
. |

Recovery Chain Kit
The recovery kit, for extreme conditions, w/ heavy-duty gear bag. |
. |

Snatch Blocks
HD Snatch blocks - we have one to suit your recovery application. |
. |
|
. |
. |
| . |
Disclaimer. Please read:
The effectiveness of this equipment is directly related to the manner in which it is installed,
used (for off-road use only), and/or maintained. Proper installation, use and maintenance is solely the responsibility of
the installer/user, and will not be assumed by Billet4X4.com.
|
. |
. |
| . |
From Austin TX, Mike Sasser's FJ w/ Xd Shackle Mounts, Crosby Shackles, & SP Fairlead
|
|
. |
. |
|
